The T55 security shutter provides security, insulation and sound proofing to domestic & light commercial applications up to 3.6m wide and 10m². The compact insulated aluminium profile enables the shutter to roll very tightly into a box which is typically between 165mm to 205mm high.

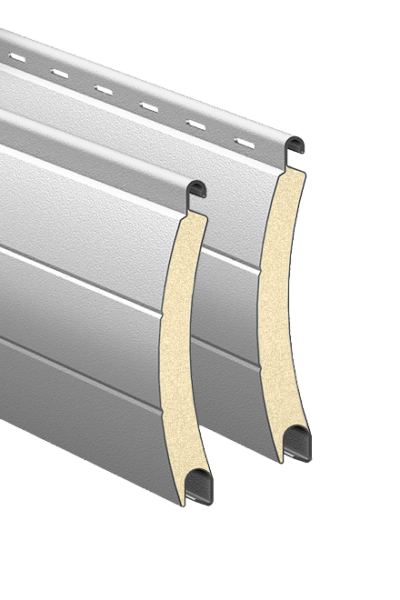

Each 55mm slat is made from double skinned aluminium with a polyurethane insulated core.
The T55 is typically electrically operated via a hard wired switch or remote control with appropriate safety features. Manual operation is available as required.
This security shutter is designed for securing smaller openings and is available in a wide range of colour options.

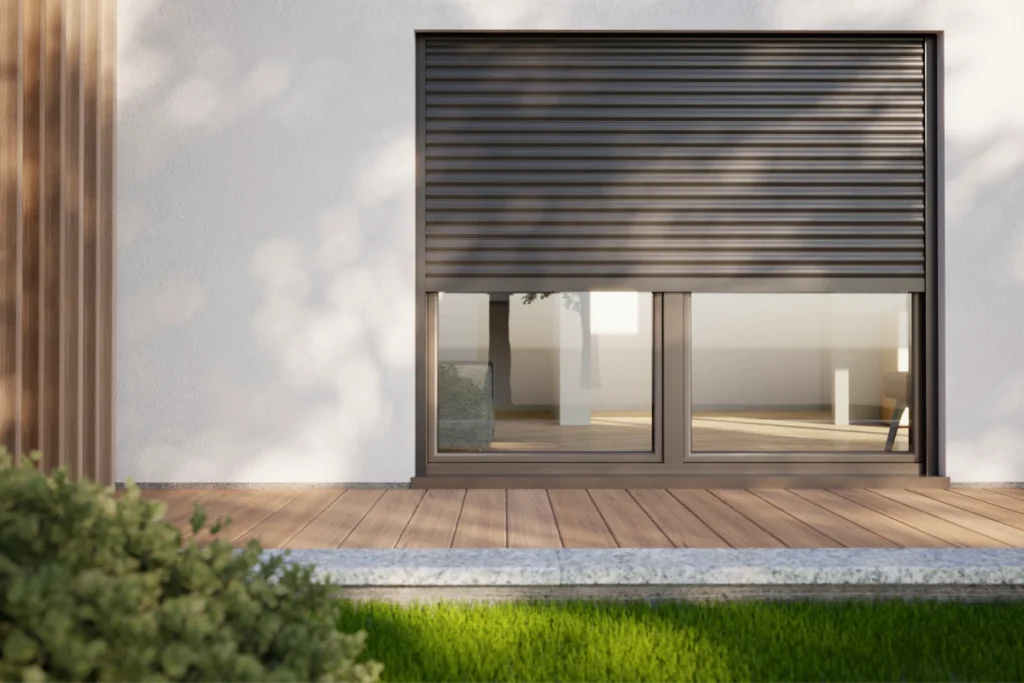

Ideal for domestic patio doors or commercial office applications up to 3.6m wide or 10m². In addition to its security function, the T55 shutter provides insulation in conjunction with a window or door system. With a wide variety of colour finishes as standard, this security shutter doubles as a high-performance remote-controlled garage door (see Compact Garage Door).
Aluminium double skinned polyester powder coated aluminium slat with polyurethane foam insulating core.
Slat face : 55mm
Weight per m² : 3.5kg
Maximum Width : 3600mm
Maximum Height : 3400mm
Maximum Surface : 10m²
Manufactured from roll formed aluminium with a stove-enamelled finish in 2 sections with a 45° chamfered lid. End caps are pressure-moulded aluminium alloy. Circular 165mm or 205mm housing is available at a surcharge for enhanced aesthetics.
Guide Height (mm) | Plate Size (mm) |
---|---|
1235 | 165 |
1520 | 180 |
2195 | 205 |
3200 | 250 |
*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.
Extruded 65mm deep aluminium guide channels and bottom slat with brush and rubber weather seals.
Electric: Somfy tubular motor as standard supplied with a safety brake as required to comply with legislation.
Manual override facility & crank handle as required (surcharge applies).
All motors have numerous control option variants. Rocker switch supplied as standard with options for key switch, remote, group or mobile phone activation.
Manual Cord Belt: A swivel winder coils the belt within a compact box.
Manual Spring & Lock: A counter-balanced spring assembly with a key-lock bottom slat & handles.
