V77 Elite – B3 (SR2)
The “Secured By Design” V77 Elite security shutter has been tested and approved by the LPCB (Loss Prevention Certification Board) to an insurance approved B3/SR2 security level (LPS 1175: Issue 8).

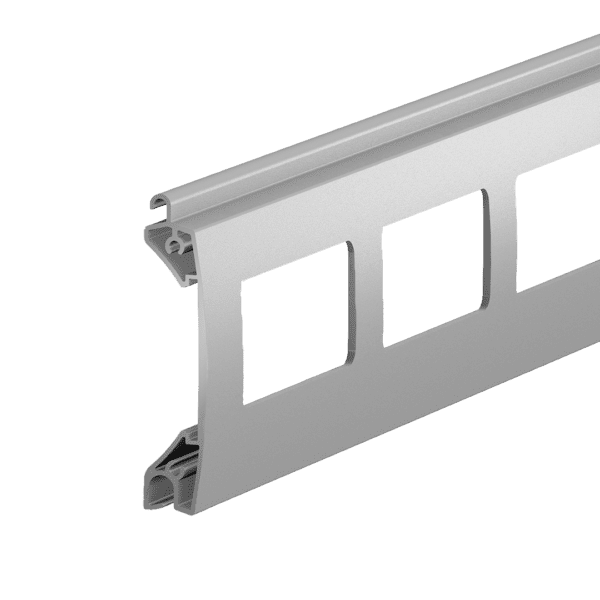

The V77 security shutter provides a medium to high security solution for commercial applications up to 6m wide and 30m2. The extruded aluminium 77mm profile allows the shutter to roll neatly into a box which is typically between 300mm and 360mm high.
Punched sections with polycarbonate inserts within the profile afford 41% see through vision and the V77 Elite profile can be used used on it’s own or combined with the E77 Elite for higher or lower levels of transparency.
The V77 is typically electrically operated via a hard wired switch or remote control with appropriate safety features.
Additional details

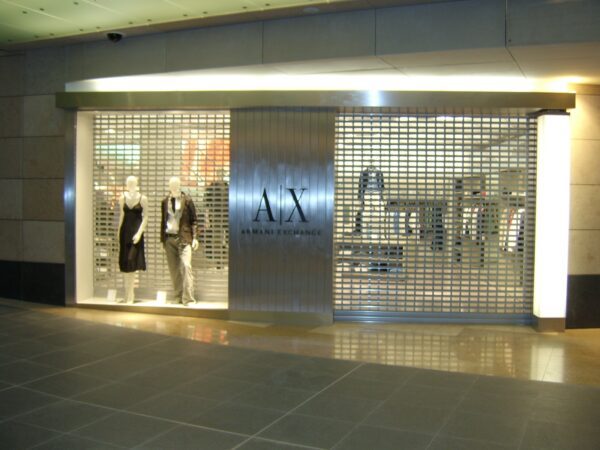

Medium to high security commercial sites & shop-front applications, up to 6m wide and 30m². Affording 41% see through vision, the V77 Elite is “Secured by Design”, insurance approved and accredited by the LPCB (Loss Prevention & Certification Board to LPS1175: Issue 8 to B3/SR2. A very versatile security shutter, popular with retail applications because it can be combined with the E77 to offer a bespoke see through vision solution.
Double skinned extruded aluminium.
Slat face : 77mm
Weight per m² : 8.5kg
Maximum Opening Width : 6000mm
Maximum Opening Height : 6000mm
Maximum Surface : 30m²
Manufactured from roll formed aluminium with a stove-enamelled finish. End caps are pressure moulded aluminium alloy.
| Guide Height (mm) | Plate Size (mm) |
|---|---|
| 1650 | 250 |
| 2600 | 300 |
| 3640 | 360 |
*Plate sizes shown as a guide only and may increase dependent on shutter width.
Note: a table of permitted heights must be observed when surveying.
Extruded aluminium 150mm deep guide channels and bottom slat with brush and rubber weather seals. Guide channels must be fitted 30mm from the opening, giving 180mm from opening edge to back of guide.
Electric: Somfy tubular motor as standard. Safety brake as appropriate to comply with legislation.
Manual override facility & crank handle as required (surcharge applies).
All motors have numerous control option variants. Rocker switch supplied as standard with options for key switch, remote, group or mobile phone activation.
