I100 Security Shutter

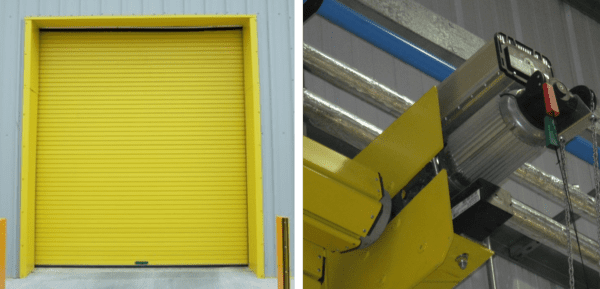

Steelroll i100 Security Shutter is for high security commercial sites requiring large aperture coverage and improved insulation properties.
Suitable for industrial, commercial and public buildings. Maximum size of 72m² with an outboard motor, with tubular motor options available for smaller openings.
Additional details
Steelroll i100 Security Shutter is for high security commercial sites requiring large aperture coverage and improved insulation properties.

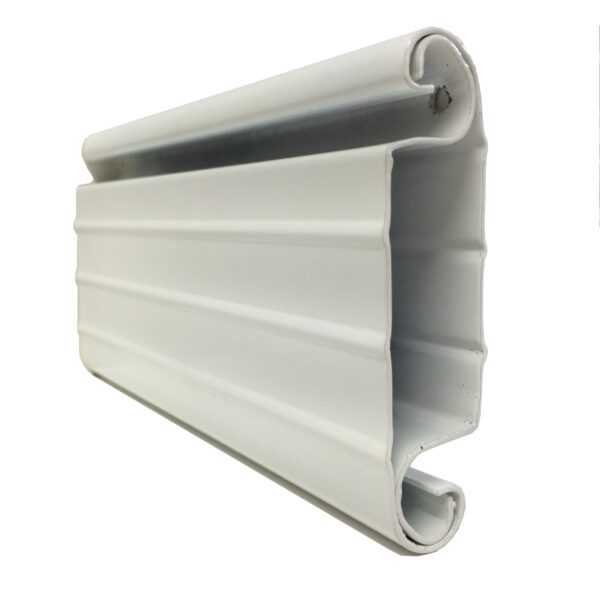

Double skinned polyester powder coated 95mm flat steel slat with polystyrene foam insulating core.
Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour or Plastisol finish (surcharges apply).
Profile Height :: 95mm
Weight per m² :: 21kg
Maximum Width :: 6500mm (tubular), 12000mm (outboard)
Maximum Surface :: 14m² (tubular), 72m² (outboard)
Manufactured from galvanised steel sheet. End caps are fabricated from steel.
Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies).
Tubular Motor:
| Guide Height (mm) | Plate Size (mm) |
|---|---|
| 1500 | 400 |
| 2500 | 450 |
| 3250 | 500 |
Outboard Motor:
| Guide Height (mm) | Plate Size (mm) |
|---|---|
| 1500 | 400 |
| 2500 | 450 |
| 3250 | 500 |
| 4000 | 550 |
| 5000 | 600 |
*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.
Galvanised steel bottom slat with EPDM weather seal. Guide channel depth is 85mm as standard.
Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies).
Note: The guide channels are bolted to fixing angles or box section to suit the application.
Electric: Tubular Motor = NRG Econom tubular motor & internal rocker or external key switch as standard (range of other motors available for a surcharge). Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group or mobile phone activation.
Outboard Motor = GfA Safedrive & Ranger three phase motors with TS959 push button control station as standard. Motors can be direct drive, chain drive or in-line design. Final configuration will be project specific but all motors incorporate a chain manual override facility. Numerous control option variants such as timed closure, group or mobile phone activation.
CE compliant to all applicable directives and regulations.
