Steelroll s76A Security SHUTTER with Aluminium housing

Steelroll S76A Stylish and Easy to Install Steel Security Shutter

Applications

High security commercial sites, up to 22m². Punched (V76) and perforated (P76) slats can be incorporated as required for full or partial vision.

Traditional steel 3'' galvanised single skin slat within a lightweight and secure aluminium housing and guide channel structure. Tubular motor operation.

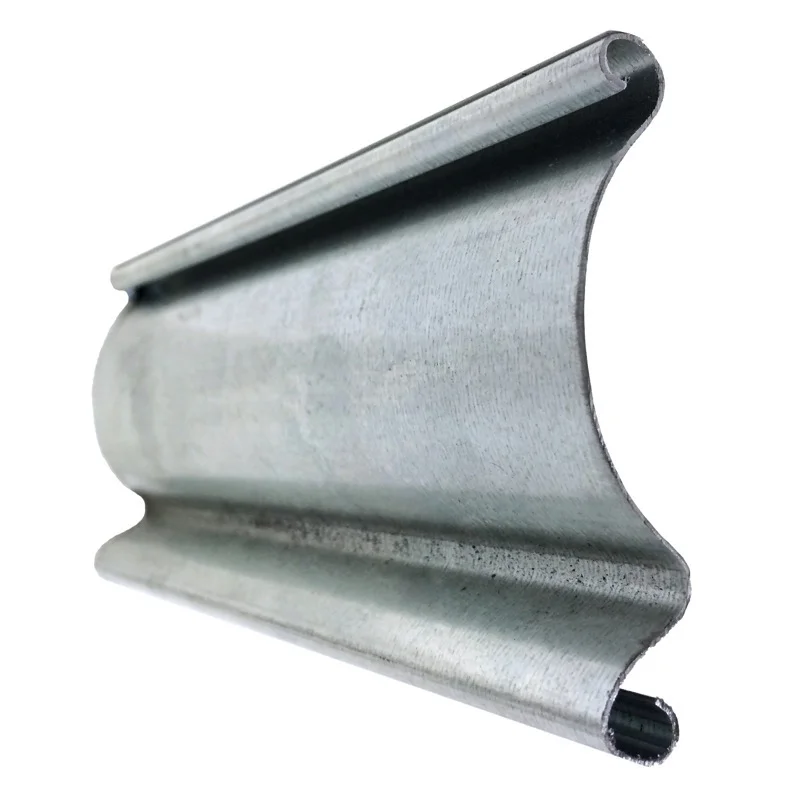

Curtain Slat

Single skin 76mm (3'') curved steel with standard galvanised finish.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour or choose from a range of plastisol finishes (surcharges applies).

Visible Surface :: 76mm
Weight per m²    ::  9.8kg / 12.5kg / 16.7kg (depending on wall thickness)
Maximum Width :: 3000mm
Maximum Surface :: 9m²

Enclosure / Housing

Manufactured from roll-formed aluminium. End caps are fabricated from press-moulded aluminium.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies).

Guide Height (mm)     Plate Size* (mm)
           2695                           305
           3000                           355

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown.  Plate sizes shown as a guide only and may increase dependent on shutter width.

Guide Channels / Bottom Slat

Galvanised steel section bottom rail: either 'L' or 'T' shape. Guide channel depth will vary dependent on application; either 70mm, 90mm or 150mm.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies).

Guide channels may be packed off with box section if packing is required.

Operation

Electric: Single-phase tubular motor with push button or key switch control. Numerous options such as group or remote control etc, available as required. Manual override facility ass required (surcharge applies).

Note: Manual spring and lock operation is available for the S76 - find more information here.

t77slatprofile
POWDER COATING

POWDER COATING

SteelRoll S76A with Aluminium housing DATA SHEET

Click here to view, download or print.
