High security commercial premises, shopfronts and car parks, with coverage for openings up to 7.9m wide and 39.6m².

Offering 72% visibility and airflow, this versatile security shutter provides an effective balance of protection, presentation, and ventilation, making it particularly well suited to demanding retail environments.

Suitable for internal face or reveal fit.

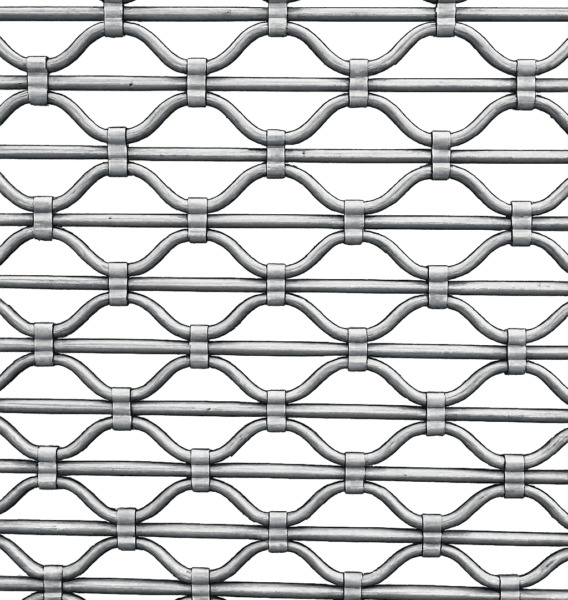

14mm steel tubes, set in a honeycomb formation.

Weight per m²: 12.8kg/m²
Maximum Width: 7920 mm
Maximum Area: 39.6 m²
Maximum Height: 5000mm
Guide Width: 100 mm

*Larger sizes are available on request

Mild steel end plates as standard with optional casing / fascia depending on fit type.
N.B. Reveal fix installations are supplied with a fascia as standard.

100mm steel guide channels.

U channel with ‘L’ shaped angle.

Tubular Motor: With internal rocker switch or external key switch on hold to run operation only and safety brake as appropriate to comply with legislation.
Manual override facility & crank handle as required (surcharge applies).

Direct Drive Motor: Single or three phase motor with integrated safety brake, chain manual override and push button control station as standard.

Inboard Motor: GfA Ranger single or three phase motor with separate safety brake, chain manual override and push button control station as standard. Single phase motor available as an optional extra.

Other motors and operator brands available on request.
Numerous control option variants such as key switch, remote and group or mobile phone activation.
