Vision

V37 Security Shutter

The V37 security shutter provides a medium security solution for domestic and commercial applications spanning openings up to 3m wide and 9m². The compact aluminium profile enables the shutter to roll very tightly into a box which is typically between 150mm and 250mm high.

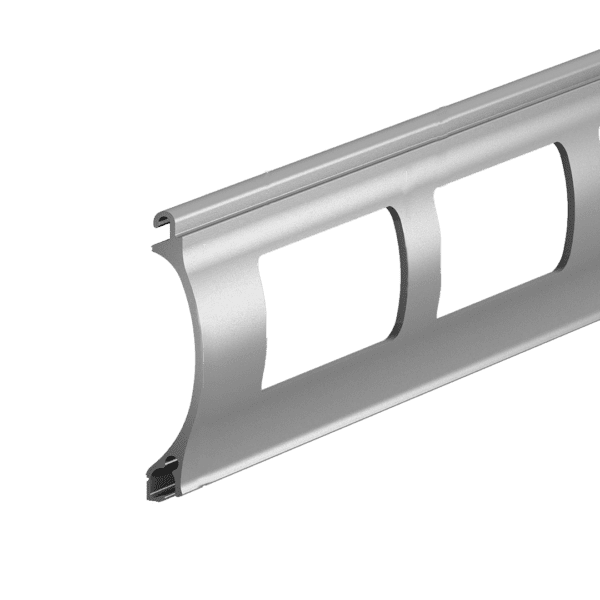

Each 37mm slat is made from single-skinned extruded aluminium with punched windows, the solid profiles on the E37 and perforated profiles on the P37 can be used in conjunction with the V37 to form a composite security shutter, offering increased airflow and visibility.

The V37 is typically electrically operated via a hard wired switch or remote control with appropriate safety features.. Manual operation is available as required.

Standard colours
Anthracite (RAL 7016)
Black (RAL 9005)
White (RAL 9016)
Option to powder coat any RAL / BS colour (surcharge applies). view our stocked RAL colours
Suitable for:
DomesticCommercial

Additional details

Medium security domestic and commercial sites, up to 3m wide and 9m². The V37 security shutters are a robust and lightweight barrier concealed within a compact enclosure when fully open. The shutter range is ideal for window openings and pedestrian door entrances, either internally or externally mounted.



Internal face fit, external face fit, reveal fit.

Single-skinned extruded aluminium slat with punched rectangular vision sections.

The V37 can be used in conjunction with the solid (E37) or perforated (P37) slats to form a composite security shutter, offering increased airflow and visibility.

Slat face : 37mm
Weight per m² : 5kg (without glazing) / 6.5kg (with glazing)
Maximum width : 3000mm
Max surface : 9m²
Maximum Height : 3400mm

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure moulded aluminium alloy.

Option to powder coat any RAL / BS colour (surcharge applies).

Guide Height (mm) Plate Size (mm)
1050 150
1535 165
1820 180
2695 205
3550 250*

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.

*75mm guide is used on 250 box/plate

Extruded aluminium 53mm, 68mm or 75mm deep guide channels.



Extruded aluminium bottom slat with brush and rubber weather seals.

ELECTRIC:
Powered by a Somfy non-override tubular motor as standard. An Aluroll tubular motor option is available.
Manual override and crank handle can be added to this shutter if required.
Supplied as standard with a choice of rocker switch or key switch controls.
Alternative operating options are available, including wireless switches, hand-held transmitters and Building Management Systems (BMS) integration.
A safety break is fitted where required to ensure compliance with current legislation.

MANUAL CORD & BELT:
Manually operated by a corded belt & box

MANUAL SPRING & LOCK:
Counterbalance spring-assisted operation with locking bottom slat and integrated handles
