E77 Security Shutter

The E77 security shutter provides a medium security solution for domestic and commercial applications spanning openings up to 5m wide and 25m². The aluminium profile enables the shutter to roll very tightly into a box which is typically between 300mm and 360mm high.

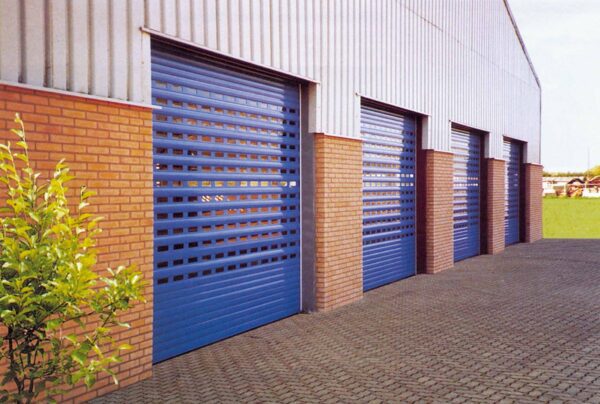

Each 77mm slat is made from double-skinned extruded aluminium and the solid profiles on the E77 can be used in conjunction with the punched (V77) or perforated (P77) slats to form a see through security shutter, offering increased airflow and visibility.

The E77 is typically electrically operated via a hard wired switch or remote control with appropriate safety features.

Standard colours
Option to powder coat any RAL / BS colour (surcharge applies). view our stocked RAL colours
Suitable for:
Talk to sales

Additional details

Medium security commercial sites & shop-front applications, up to 25m².The E77 can be upgraded to insurance approved Secure By Design status – LPS1175 (6.0) SR2 – see the E77 Elite for more information. A very versatile security shutter, popular with retail applications because it can be upgraded to incorporate vision profiles and be “insurance approved”.

Double skinned extruded aluminium solid slat.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies).

Slat face : 77mm
Weight per m² : 8.5kg
Maximum Width : 6000mm
Maximum Height : 5000mm
Maximum Surface : 25m²

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure-moulded aluminium alloy.

Guide Height (mm) Plate Size (mm)
1650 250
2600 300
4640 360

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.

Extruded aluminium 70mm, 90mm or 150mm deep guide channels and bottom slat with brush and rubber weather seals.


Electric: Somfy tubular motor as standard. Safety brake as appropriate to comply with legislation.

Manual override facility & crank handle as required (surcharge applies).

All motors have numerous control option variants. Rocker switch supplied as standard with options for key switch, remote, group or mobile phone activation.

Manual: Manual operation is available but not common as the shutter tends to be used to cover large openings.
