E37 Security Shutter
The E37 security shutter provides a medium security solution for domestic and commercial applications spanning openings up to 4m wide and 12m². The compact aluminium profile enables the shutter to roll very tightly into a box which is typically between 150mm and 250mm high.
Each 37mm slat is made from double-skinned extruded aluminium and the solid profiles on the E37 can be used in conjunction with the punched (V37) or perforated (P37) slats to form a composite security shutter, offering increased airflow and visibility.
The E37 is typically electrically operated via a hard wired switch or remote control with appropriate safety features. Manual operation is available as required.
Additional details

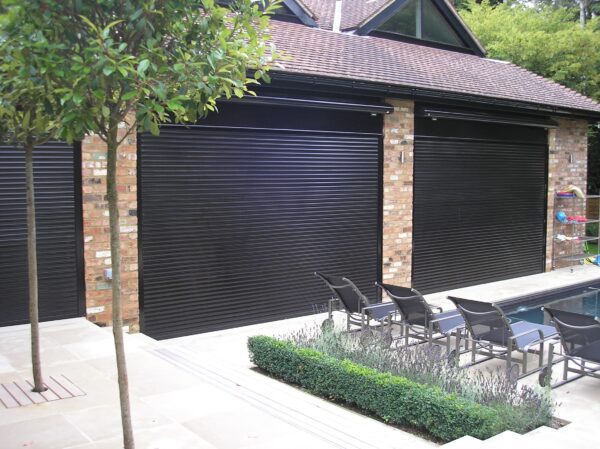

Medium security domestic and commercial sites, up to 4m wide and 12m². The E37 security shutters are a robust and lightweight barrier concealed within a compact enclosure when fully open. The shutter range is ideal for window openings and pedestrian door entrances, either internally or externally mounted.
Internal face fit, external face fit, reveal fit.
Double skinned extruded aluminium slat.
The E37 can be used in conjunction with the punched (V37) or perforated (P37) slats to form a composite security shutter, offering increased airflow and visibility.
Slat face : 37mm
Weight per m² : 7.5kg
Maximum Width : 4000mm
Max Surface : 12m²
Maximum Height : 3500mm
Manufactured from roll formed aluminium with a stove-enamelled finish in 2 sections with a 45° chamfered lid. End caps are pressure-moulded aluminium alloy. Circular 165mm or 205mm housing is available to enhance aesthetics (surcharge applies).
| Guide Height (mm) | Plate Size (mm) |
|---|---|
| 1050 | 150 |
| 1535 | 165 |
| 1820 | 180 |
| 2695 | 205 |
| 3550 | 250** |
*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.
**75mm guide is used on 250 box/plate.
Extruded aluminium 53mm, 68mm or 75mm deep guide channels.
Extruded aluminium bottom slat with brush and rubber weather seals.
ELECTRIC:
Powered by a Somfy non-override tubular motor as standard. An Aluroll tubular motor option is available.
Manual override and crank handle can be added to this shutter if required.
Supplied as standard with a choice of rocker switch or key switch controls.
Alternative operating options are available, including wireless switches, hand-held transmitters and Building Management Systems (BMS) integration.
A safety break is fitted where required to ensure compliance with current legislation.
MANUAL CORD & BELT:
Manually operated by a corded belt & box
MANUAL SPRING & LOCK:
Counterbalance spring-assisted operation with locking bottom slat and integrated handles
