SecureRoll┬« Standard features & OPTIONS

Secureroll roller garage doors are customisable to your exact job requirements; material, style, size, colour and operation. Our solutions support the latest consumer technology such as remote operation via apps and network integration including addition of lighting and other features.

Many features detailed below come as standard on Aluroll's products while others are optional extras.

Standard Features

security-shutter-safety-brake

Safety Brake

In the unlikely event the motor drive shears an automatic safety brake instantly stops the door from dropping.

shutter-anti-lift-locking-straps

Anti-Lift Locking System

Secure closure is maintained with high grade, robust lock straps that prevent the curtain from being lifted. Their turn lock design provides ease of installation.

shutter-strong-door-guides-slats

Strong Guides and Slats

Extruded aluminium guides with a draught brush and anti-rub glide-brushes ensure the door curtain is secure and operation is smooth. The extruded bottom weather strip channel adds further rigidity.



Optional Extras

Security Shutter External Overide.jpg

External Override

If you have no other access to your garage an external override allows manual operation of the garage door in the event of a power failure via a lockable cover.



security-shutter-space-saving

Space Saving Roll

The door travels vertically into a compact roll for maximum space inside and out. Meaning no lost space with our solutions.

T77 - Close Side.png

Durable Slats

The curved and ribbed profile of the T77 & T55 slats are formed from aluminium filled with CFC free foam for a lightweight, strong and corrosion resistant curtain.

door-wireless-safety-sensor

Wireless Safety Edge Sensor

The standard solution is proven for long-term reliability and uses a wireless safety edge to automatically halt the door on detecting an obstruction - fully compliant with European Safety Directives.


Vision Slats.jpg

Vision Slats

A simple but effective way of allowing light into the garage space. Polycarbonate infils keep the weather at bay. A maximum of three slats ensures the strength an integrity of the door is maintained.

security-shutter-manual-overide

Manual Override

If the power fails, a simple hand crank allows you to wind the door up or down to keep you secure and maintain access.

shutter-effective-weather-strip

Effective Weather Strip

The profile of the bottom edge weatherstrip channels rain run-off away from the door to minimise water ingress into the garage space.

shutter-motors

Choice of Motors

Aluroll carefully select and test the best industry motors. Our motors are manufactured by the likes of Somfy, Elero, GFA and NRG Automation. All come with a comprehensive 5 year warranty.





Fixing Options

    INTERNAL FACE FIX

INTERNAL FACE FIX

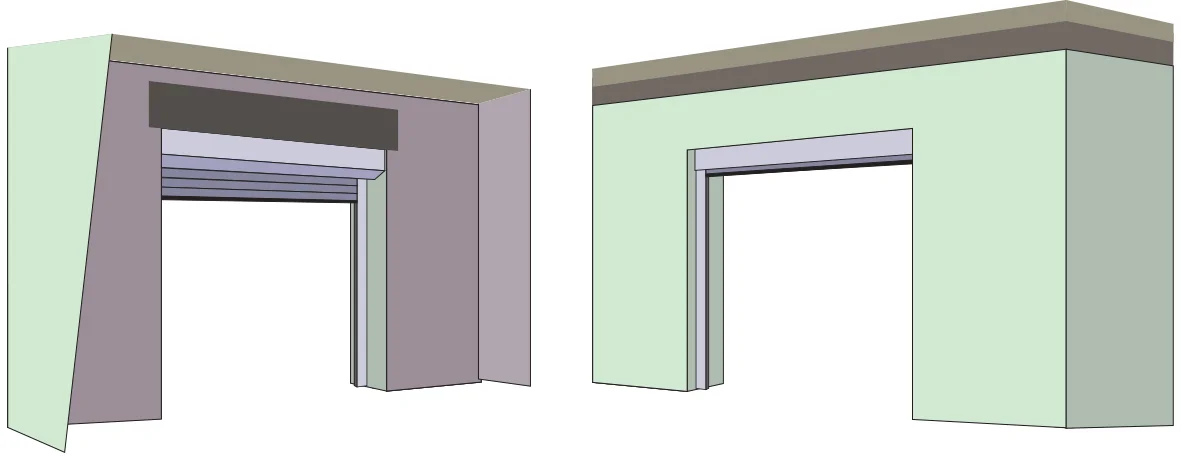

    REVEAL FIX

REVEAL FIX

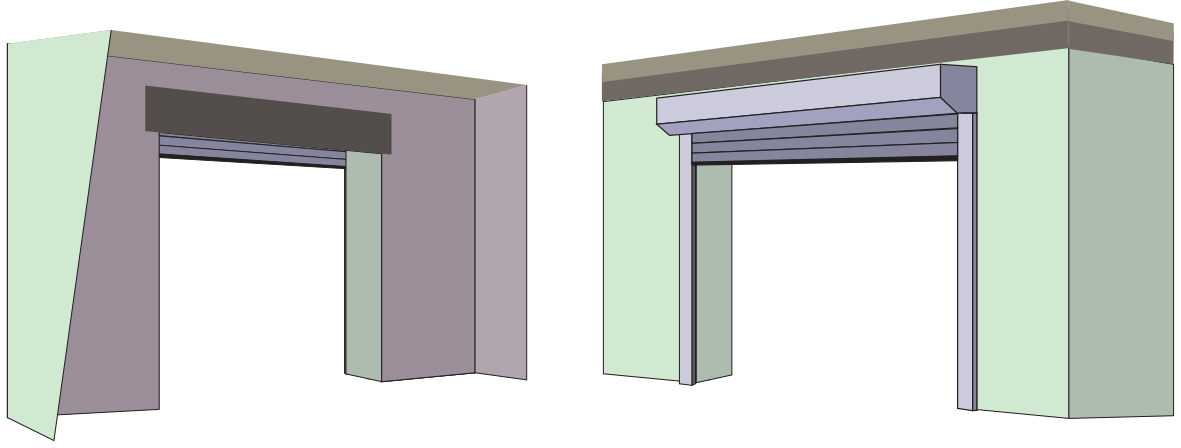

    EXTERNAL FACE FIX

EXTERNAL FACE FIX

The most common location is fitting to the inside face of the garage opening. Maximises security and the clear drive-through width between the opening uprights.





Fitting under the opening lintel and between the uprights when face fixing is not possible. It requires good reveal headroom. Aluroll T55 Compact is ideal for this installation



When headroom does not permit internal fixing the doors can be fixed to the external face. A full roll box is required. The concave face of the door curtain slats face outwards
