v77 Security Shutter

Applications

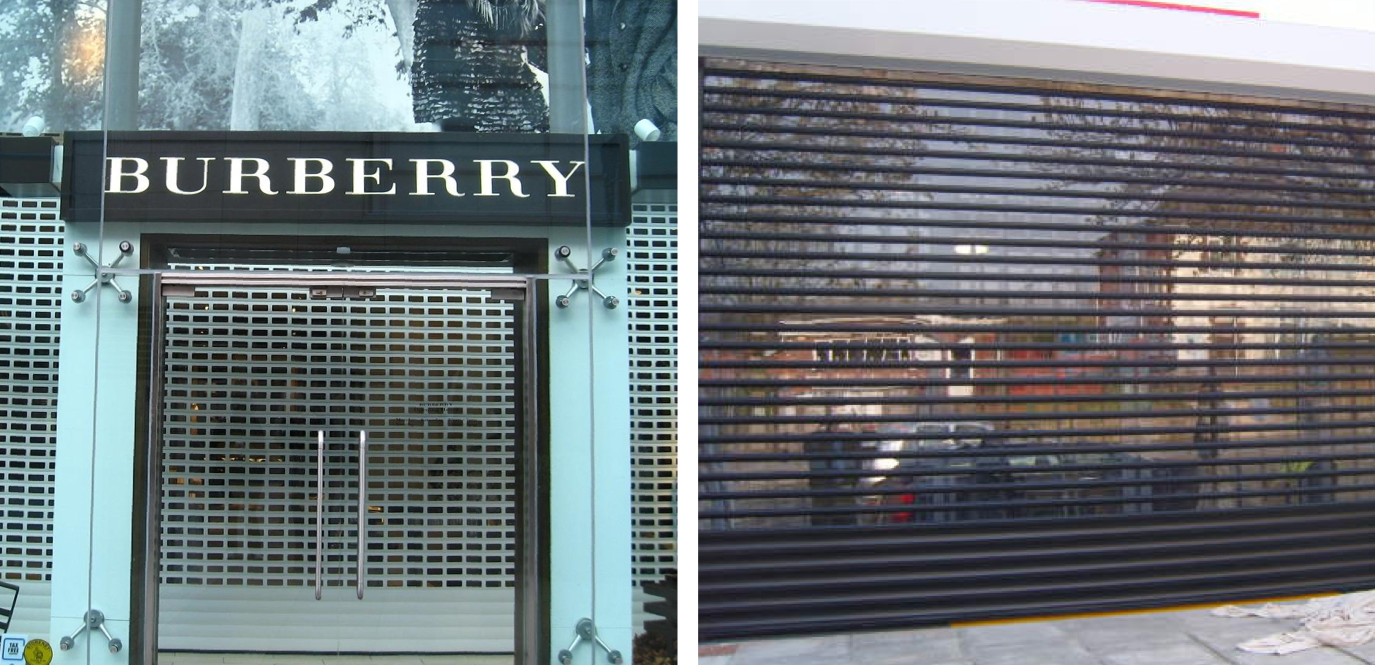

Suitable for high security commercial sites & shop-front applications, up to 25m². The V77 shutter affords 41% vision as well as an outstanding security rating among vision profiles. The slat offers polycarbonate inserts to infill the punched section if required, adding to the thermal insulation properties and the security value.

The E77 & V77 can be upgraded to LPCB status - LPS1175 (6.0) SR2 - see the E77 & V77 Elite for more information.

Curtain Slat

Single-skinned extruded aluminium.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Blind Surface :: 77mm
Weight per m² (w/o inserts) :: 7.5kg
Weight per m² (with inserts) :: 8.8kg
Maximum Width :: 6500mm
Maximum Surface :: 25m²

Enclosure / Housing

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure-moulded aluminium alloy.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Guide Height (mm)         Plate Size* (mm)
            1650                            250
            2600                           300
            4640                            360

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown.  Plate sizes shown as a guide only and may increase dependent on shutter width.

Guide Channels / Bottom Slat

Extruded aluminium bottom slat with EPDM weather seal.
Guide channels with brush infill, and channel depth of 70, 90 or 150mm.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Operation

Electric: Single phase tubular motor & wall switch as standard. Numerous options such as group or remote control etc. Manual override facility as required.

Note: Manual operation is available but not common for the V77 since the large area usually covered by the shutter contributes to the weight of the weight.

Aluroll V77 Security Shutter Slat Profile
Aluroll-V77-Security-Shutter-Slats
POWDER COATING

POWDER COATING

v77 SECURITY Shutter DATA SHEET

Click here to view, download or print.
