t77 security shutter

Aluroll T77 Security Shutter Installed

Applications

Suitable for medium security residential applications, this garage door is individually made-to-measure to specific user requirements. Remote control operation with safety features meeting BS EN 13241-1, and manual override all as standard.

A wide range of colours are available, including wood grain finishes to match existing doors and windows. Installed across openings of up to 16m². The T77 can be upgraded to 'Secured by Design' status, Security Rating 1 according to LPS 1175 issue 6.0. See the T77 Elite for more information.

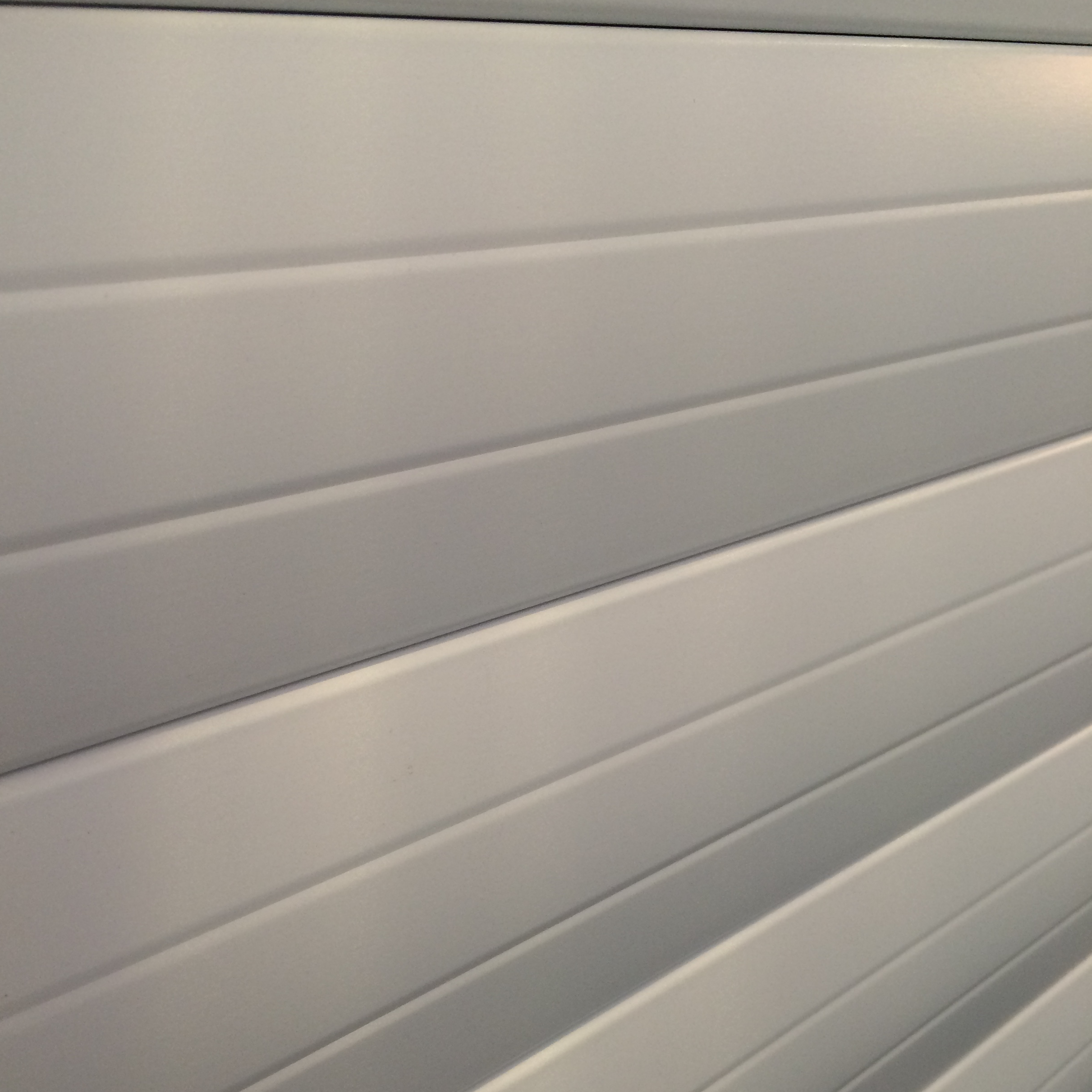

Curtain Slat

Aluminium double-skinned polyester powder coated slat with polyurethane foam insulating core.

Colours: White, Silver, Grey, Cream White, Beige, Ivory, Duck Egg Blue, Blue, Red, Chartwell Green, Moss Green, Fir Green, Anthracite, Brown, Black, Painted Golden Oak or Painted Rosewood as standard. Powder coating and wood laminate effects are also available (surcharge applies). View our stocked powder coating colours here.

Blind Surface :: 77mm
Weight per m² :: 5.5kg
Maximum Width :: 5500mm
Maximum Surface :: 16m²

Enclosure / Housing

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure-moulded aluminium alloy.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Guide Height (mm)     Plate Size* (mm)
           1750                          250
           2700                         300
           4640                         360

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown.  Plate sizes shown as a guide only and may increase dependent on shutter width.

Guide Channels / Bottom Slat

Bottom slat from extruded aluminium with EPDM weather seal.Guide channels with brush infill and a depth of 70mm, 90mm or 150mm.

Colours: White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Operation

Electric: Single phase tubular motor & wall switch as standard. Numerous options such as group or remote control etc. Manual override facility as required.

Note: Manual operation is available but not common for the T77 profile as it is utilised for larger areas in most cases.

Aluroll-T77-Security-Shutter-Slat-Profile
POWDER COATING

POWDER COATING

T77 Security shutter DATA SHEET

Click here to view, download or print.
