Steelroll s76 security shutter

steelroll s76 security shutter

Applications

High security commercial sites. Punched (V76) & perforated (P76) slats can be incorporated as required for full or partial vision. This page details the S76 with tubular motor. See the S76 Outboard page for more information on three phase motors. The S76 can also be upgraded to LPCB Security Rating 2 according to LPS 1175 issue 6.0 - see the S76 Elite for more information.

Curtain Slat

Single skin 76mm (3'') curved steel. Wall thickness of 0.7mm, 0.9mm or 1.2mm.

Colour: Galvanised finish. Option to powder coat any RAL / BS colour or choose from a range of plastisol finishes (surcharges applies).

Visible Surface :: 76mm
Profile Height :: 86.6mm
Weight per m² :: 9.8kg / 12.5kg / 16.7kg (depending on wall thickness)
Maximum Width :: 7000mm
Maximum Surface :: 29m²

Enclosure / Housing

Manufactured from galvanised steel sheet. End caps are fabricated from steel.

Colour: Galvanised finish. Option to powder coat any RAL / BS colour (surcharge applies).

Guide Height (mm)      Plate Size* (mm)
            2695                          305
            4000                          355
            5000                          400

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown. Plate sizes shown as a guide only and may increase dependent on shutter width.

Guide Channels / Bottom Slat

Galvanised steel section bottom rail: either 'L' or 'T' shape. Guide channel depth will vary dependent on application, either 50mm, 65mm, 75mm or 100mm. Windlock guides available for 65mm.

Colour: Galvanised finish. Option to powder coat any RAL / BS colour (surcharge applies).

Guide channels are bolted onto angle or box section, depending on the application.

Operation

Electric: Tubular or three phase outboard motor (see S76 Outboard Motors page). NRG Econom tubular motor with internal rocker or external key switch as standard. GfA & Ranger three-phase motors with push button control as standard and direct drive, inboard or outboard design.Manual override facility as required (surcharge applies).

Numerous control option variants including timed closure, group, remote control or mobile phone activation.



Note: Manual spring & lock operation is also available with the S76 - find more information here

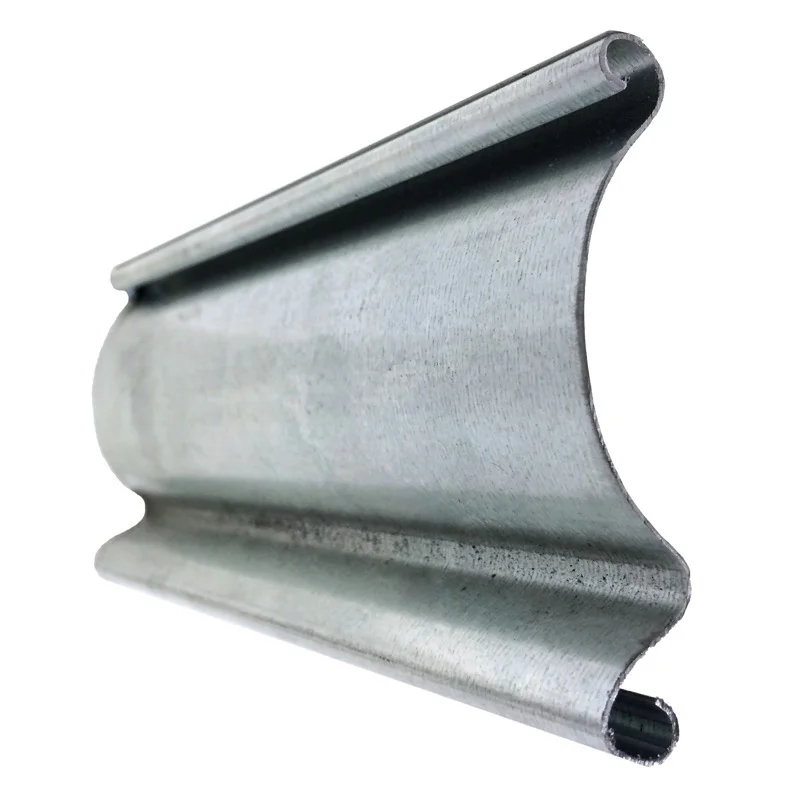

s76slatprofile
s76 closed
POWDER COATING

POWDER COATING

Steelroll s76 security shutter DATASHEET

Click here for S76 tubular motor datasheet.

Click here for S76 outboard motor datasheet.
