Applications

Steel security shutter suitable for high security commercial sites up to 72m². Shutters employing direct drive or flange-mount motors are designed to cover a large opening area, or for applications requiring a full cycle up to 160 times per day.

High-speed 'rapid-roll' shutters making use of a frequency inverter can operate up to 250 cycles per day, with programmable soft start/stop, and rapid yet safe opening and closing. CE marked to harmonised standard BSEN 13241-1:2003.

The S76 can be upgraded to 'Secured by Design' status, with LPCB Security Rating 2 according to LPS 1175 issue 6.0. See the S76 Elite for more information.

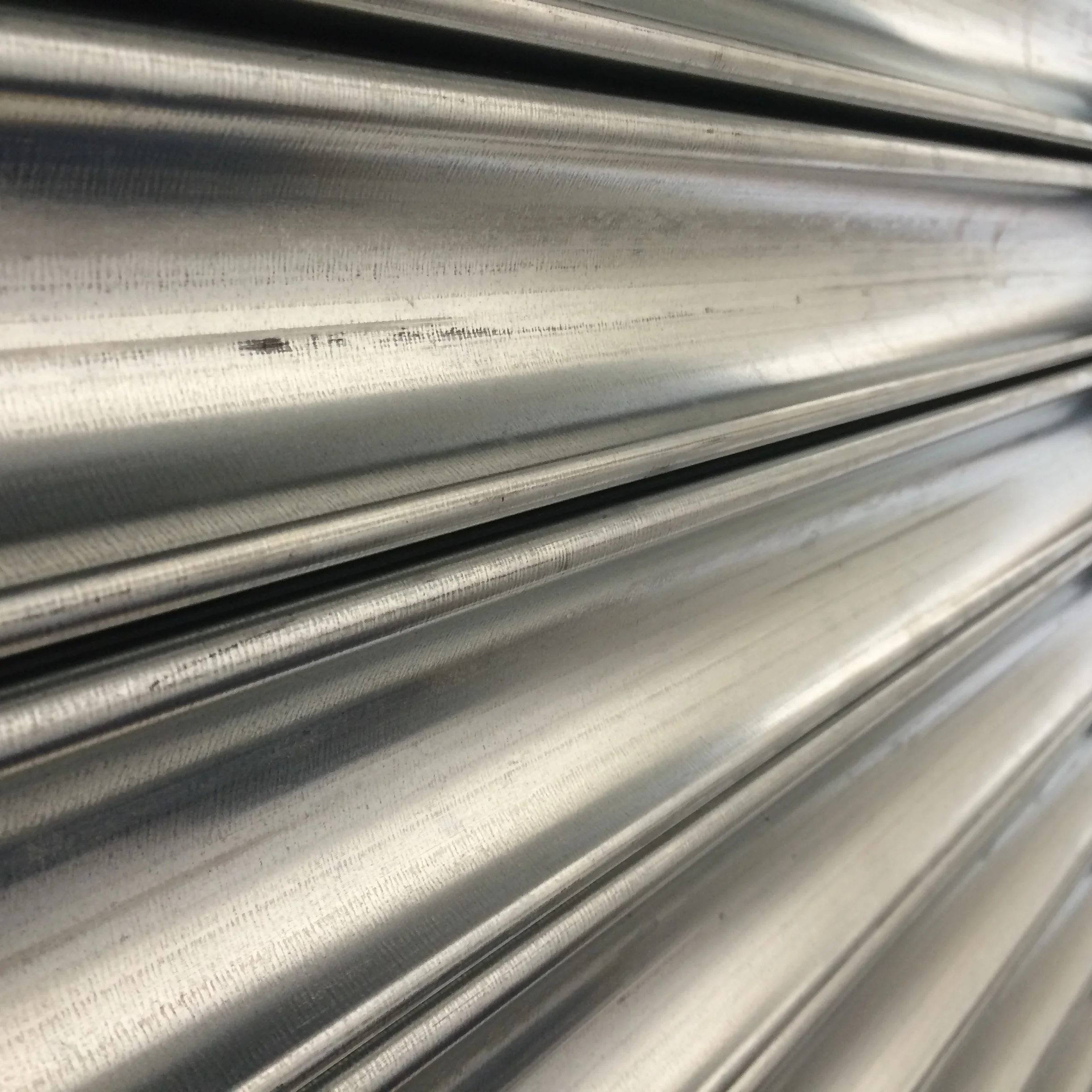

Curtain Slat

Single skin 76mm (3'') curved steel standard galvanised finish. Wall thickness 0.7mm, 0.9mm, or 1.2mm, depending on overall shutter opening width.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour or Plastisol finish (surcharges apply). View our stocked powder coating colours here and our Plastisol range here.

Visible Surface :: 76mm
Profile Height :: 86.6mm
Weight per m²   :: 9.8kg / 12.5kg / 16kg (depending on wall thickness)
Maximum Width :: 12000mm
Maximum Surface :: 72m²

Enclosure / Housing

Manufactured from galvanised steel sheet. End caps are fabricated from steel.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

Shutter Height (mm)       Plate Size* (mm)
              2200                          305
              3650                          355
              6000                          400

*These sizes apply to standard shutter roll methods only. Reverse rolled curtains will require larger boxes than those shown.  Plate sizes shown as a guide only and may increase dependent on shutter width.

Guide Channels / Bottom Slat

Galvanised steel section bottom rail: either 'L' or 'T' shape. Guide channel depth will vary dependent on application, either 50mm, 65mm, 75mm or 100mm. Wind guide option available for 65mm.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here

Guide channels are bolted onto angle or box section, depending on the application. See Plan drawings on this sheet.

Operation

Electric: GfA Safedrive & Ranger three phase motors with TS959 push button control station as standard. Motors can be direct drive, chain drive or in-line design. Final configuration will be project specific but all motors incorporate a chain manual override facility as standard. Numerous control option variants such as timed closure, group, remote or mobile phone activation. See S76 for single phase tubular motor.

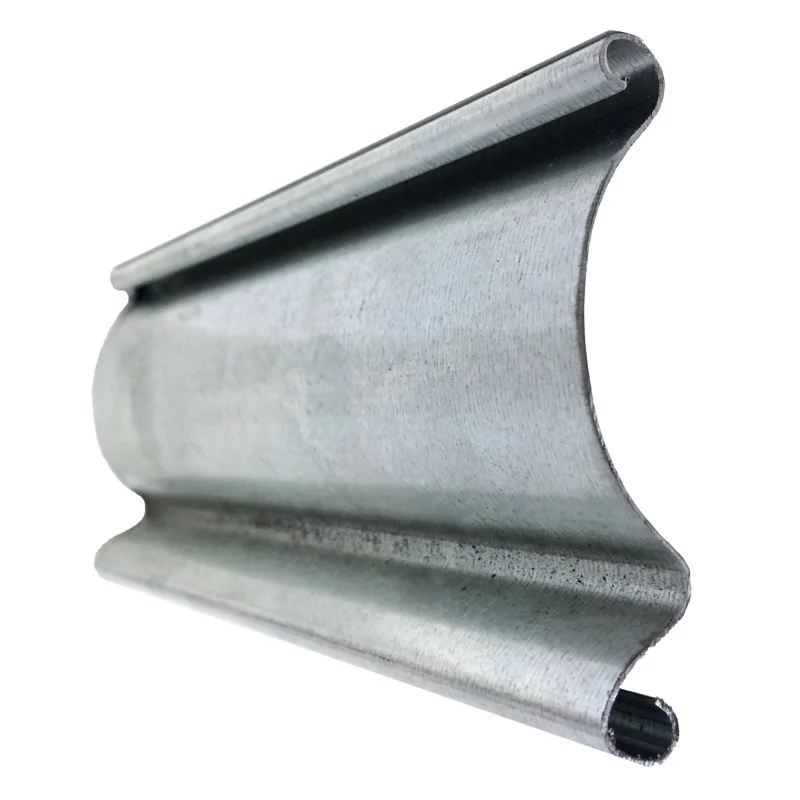

S76 Slat Profile .jpg
