Steelroll I100 Elite - SR4 LPCB Approved

steelroll s76 security shutter

Applications

A roller shutter of the highest available security level for use on sites such as government premises, police stations, banks, and utilities supply installations. The Steelroll i100 Elite SR4 has been tested by the Loss Prevention Certification Board LPS1175 (7.0), rated SR4, and awarded 'Secured by Design' status. Internal face fix installation only. CE marked to harmonised product standard BSEN 13241-1:2003.

LOCKING MECHANISMS

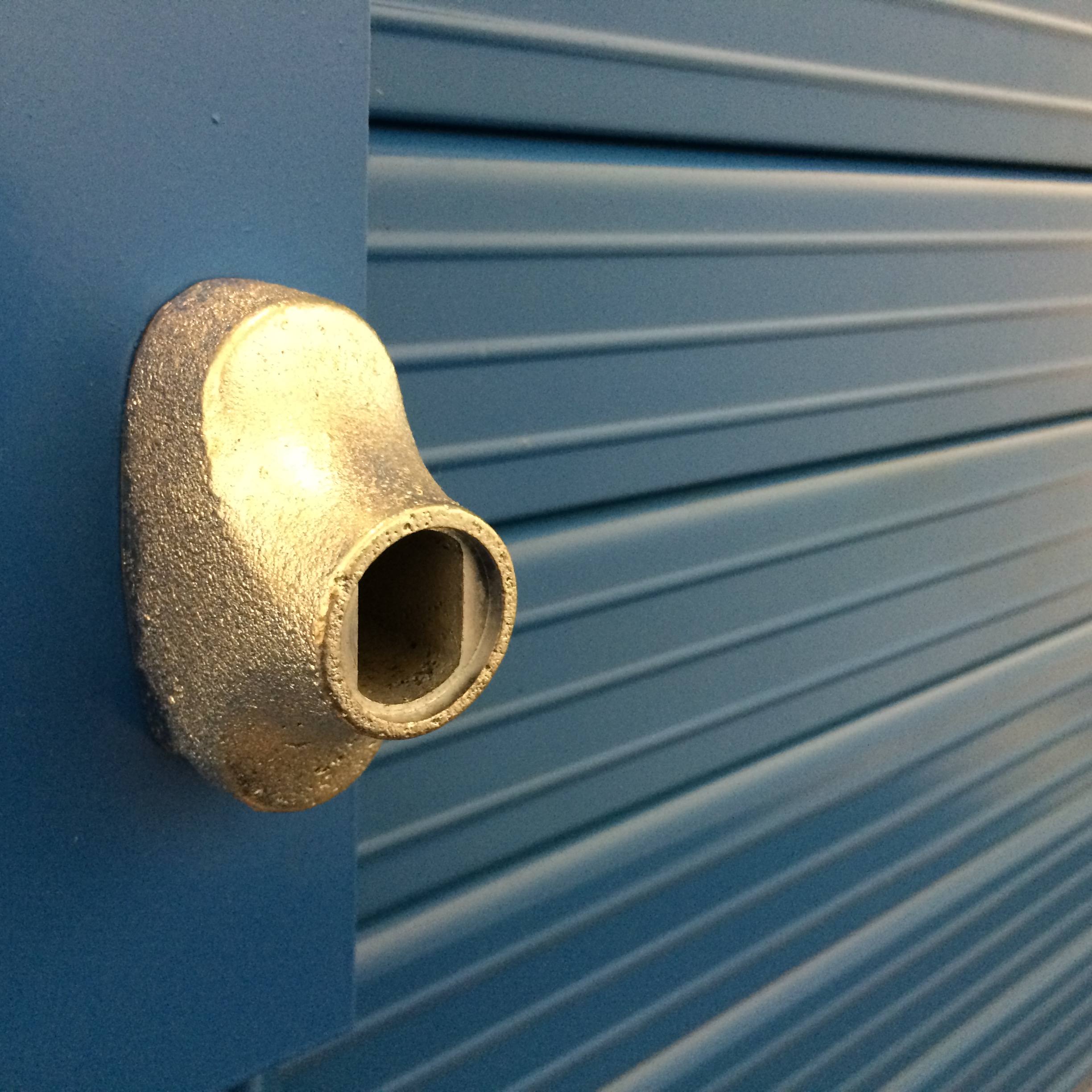

The Steelroll i100 incorporates a bullet locking system situated 1 meter from ground level, fixed to each guide channel; side anchors inside guide; central ground anchor on the bottom lath on shutters over 3 meters wide. Lock isolator kits available to prohibit operation of the shutter while in the locked condition.

CURTAIN SLAT

Double skinned mild steel insulated slat with 81mm face and optional insulated core. Wall thickness 1.2mm. Concealed reinforcement bars and security end locks fitted.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour or Plastisol finish (surcharges apply). View our stocked powder coating colours here and our Plastisol range here.

Visible Surface :: 81mm
Profile Height  :: 100mm
Weight per m²     :: 100kg
Maximum Width  :: 3000mm (tubular), 7000mm (outboard)
Maximum Surface  :: 4m²  (tubular), 35m² (outboard)

ENCLOSURE / HOUSING

Housing manufactured from steel sheet. End caps are fabricated from steel plate.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

TUBULAR MOTOR:

Guide Height (mm)        Plate Size* (mm)                                                    1750                               400                                                                 2500                              450

OUTBOARD MOTOR:

Guide Height (mm)        Plate Size* (mm)                                                    1750                               400                                                                2500                              450                                                                3250                              500                                                                4000                              550                                                                 5000                             600

*Plate sizes shown as a guide only and may increase dependent on shutter width.

GUIDE CHANNELS / BOTTOM SLAT

Guide channels are 85mm reinforced wind guides.

Colour: Galvanised finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). View our stocked powder coating colours here.

OPERATION

Electric: Outboard Motor = GfA Safedrive & Ranger three phase motors with TS959 push button control station as standard. Motors can be direct drive, chain drive or in-line design. Final configuration will be project specific but all motors incorporate a chain manual override facility. Numerous control option variants such as timed closure, group or mobile phone activation.



slatprofile
LPCB Logo i100 SR4 Elite.PNG
Aluroll Security Shutter Secure By Design Approved Product
POWDER COATING

POWDER COATING

STEELROLL I100 ELITE - SR4 LPCB APPROVED Data sheet

Click here to view, download or print.
